W1131 MULTIFUNKCIJSKA ZADNJA LUČ W155 12V-24V

W1131 - MULTIFUNKCIJSKA LUČ W155 12V-24V.

Funkcije: pozicijska, zavorna luč
stran montaže: univerzalna
napetost: 12V-24V
žice: 200cm YLY-S 3x0,5mm

Diode:  DA
Žarnice: NE

F

Product description:

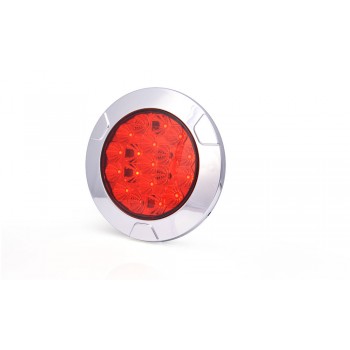

W155 is a modern 19 LED multifunctional rear lamp characterized by its attractive design and low power consumption. Two types of lights: the position and stop, are concentrated in a single lamp in the shape of a honeycomb, harmoniously contained within a chrome ring with a diameter of 152mm. The lamp can work at 12V and 24V operating voltages, has an EMC approval and IP protection 66/68.

It is available in 2 mounting variants:
- 1131 can be mounted on three screws hidden beneath a chrome ring with or without the back casing. Recessed into a hole having a diameter of 113mm, it protrudes beyond the profile of the vehicle only 18mm.

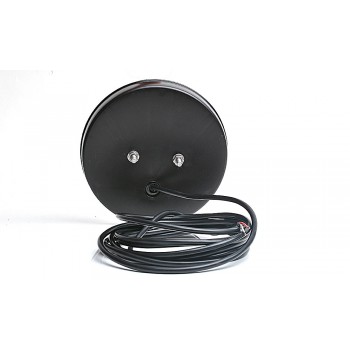

- 1131/I, with a back casing with M6 screws of 45mm spacing.

The specially designed reflector using energy-efficient LEDs, slim design and full production in Poland, make the W155 lamp the exceptionally attractive product.
Approval: E20, R10, R7
Operating voltage: 12V - 24V
Light source: 19 LED
Weight: ~ 0,41 kg
IP Class: IP66 / IP68
Cable: 200 cm YLY-S 3x0,5mm2
Power consumption at 12V operating voltage:
- Position light: 0.24W
- Stop light: 1.7W
Power consumption at 24V operating voltage:
- Position light: 0.48W
- Stop light: 3.4W
